A new sliding system for sliding doors
ECLISSE has developed a new sliding system that allows to divide two rooms with large opening.
The multi-slide hardware set allows the installation of door panels up to the ceiling height. Made of anodized aluminum, it is fixed to the ceiling with brackets and allows to give a flush finish to the ceiling. It has a decentralized door guide and door dragging system.

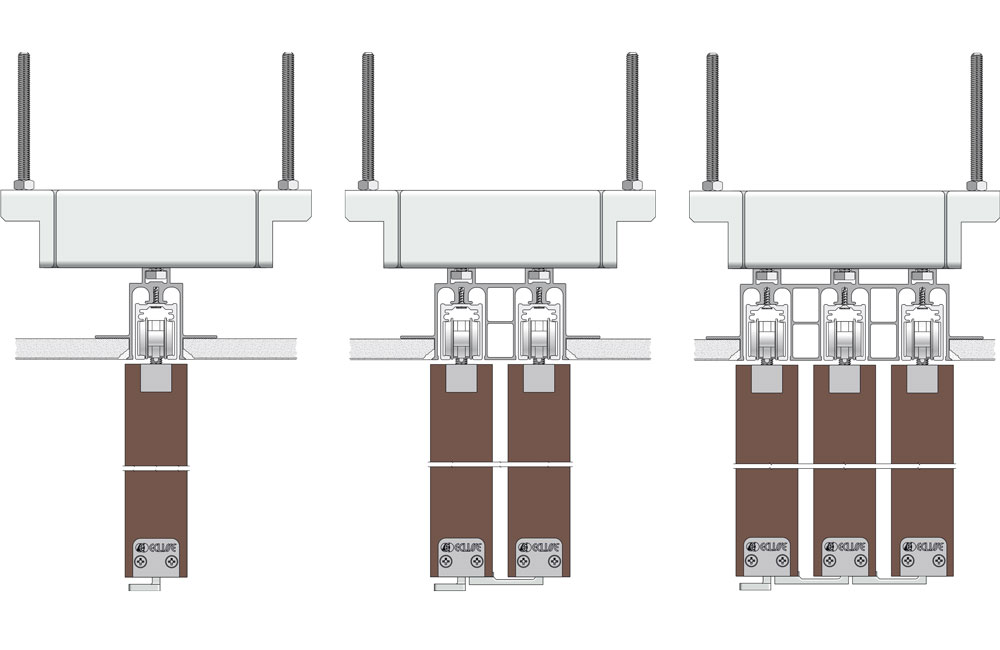

![Ceiling mounted sliding door system](/media/filer_public/93/9b/939b4883-2dd7-40f7-8303-45d18ee58ace/ceiling-track_versions.jpg)
single track | double track | triple track

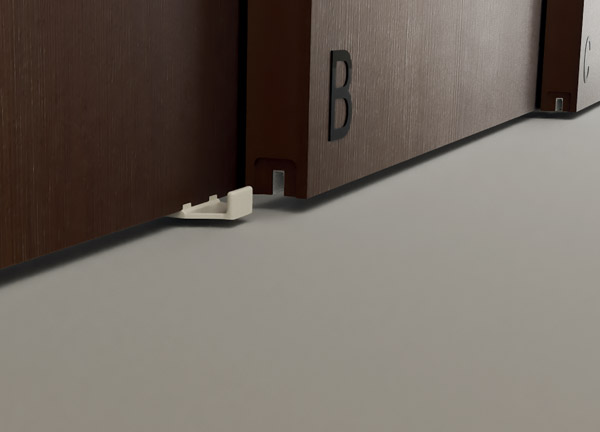

![Multi-slide hardware set detail](/media/filer_public/3c/bd/3cbdfa80-e903-4efc-aef2-a5b77f3d6953/ceiling-track-detail-1.jpg)
Benefits
Available in single, double and triple version up to L=6000 mm.
Possibility to install ECLISSE BIAS and ECLISSE BIAS DS.
Only for wooden doors - Door thickness from 40 to 44 mm.
Also available for door panels up to 150 kg.
