Syntesis Baseboard

Aluminium profile for flush skirting board

OVERVIEW
ECLISSE Syntesis profile for flush baseboard

Traditional baseboards ruin the flush wall effect you are looking for?

Place your furniture just attached to the wall

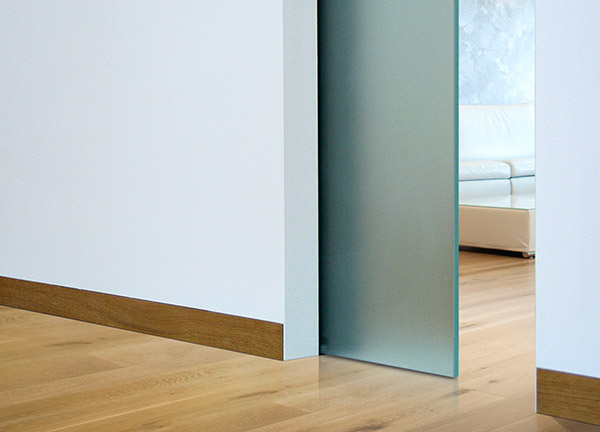

ECLISSE Syntesis Baseboard is designed to furnish the rooms in an elegant, modern and minimalist style. Unlike traditional baseboards, thanks to its installation system ECLISSE Syntesis Baseboard runs in line with the wall without protruding.

The ideal combination between the elements

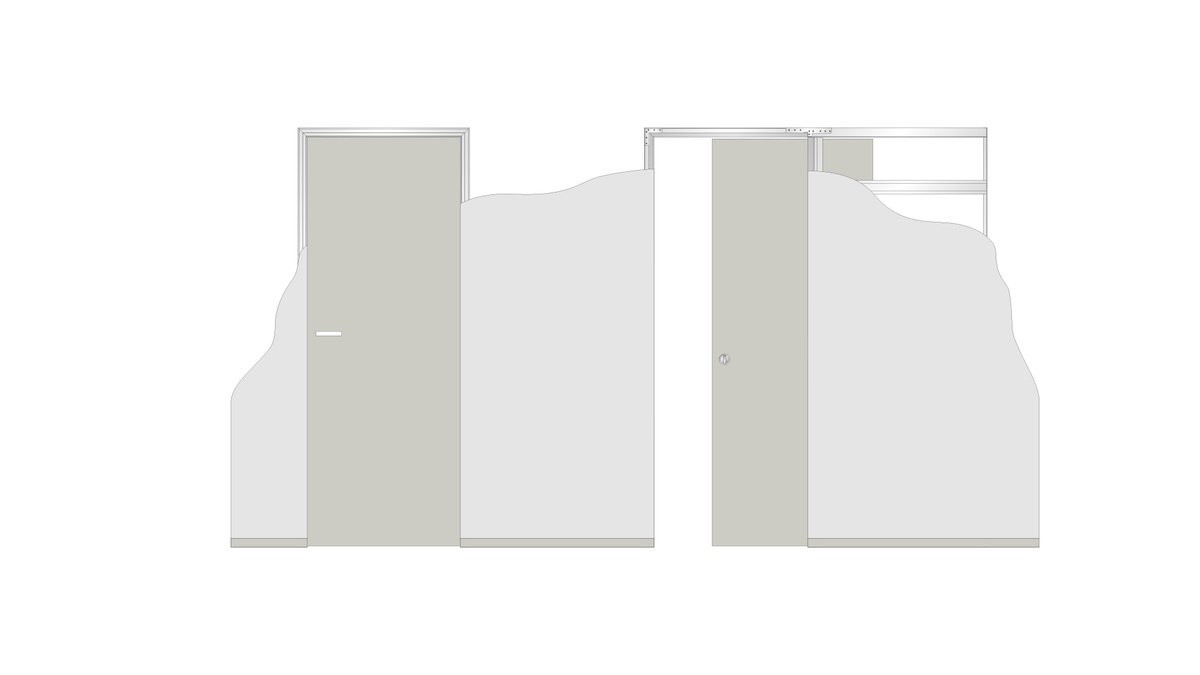

ECLISSE Syntesis Baseboard creates the perfect harmonious combination with all the other models from the Syntesis Flush Collection. Both for hinged and sliding models, ECLISSE provides the terminal profiles to be fixed to the frame so as the baseboard can be built in flush with the wall.

ECLISSE Syntesis profile for flush baseboard

Why ECLISSE

Different systems for your business and for your needs.

Learn more



Size Guide

A wide range of systems. Find your best pocket doors.

Learn more



Purchase ECLISSE

Choose the best way to buy our products close to you.

Find dealer

FEATURES

What you should know

The ECLISSE Syntesis Baseboard solution is performed, before the plastering and the floor laying, by preparing the groove for the baseboard and placing the special aluminum profiles which are drilled during the masonry construction.
ECLISSE Syntesis Baseboard can be backlit with LEDs.

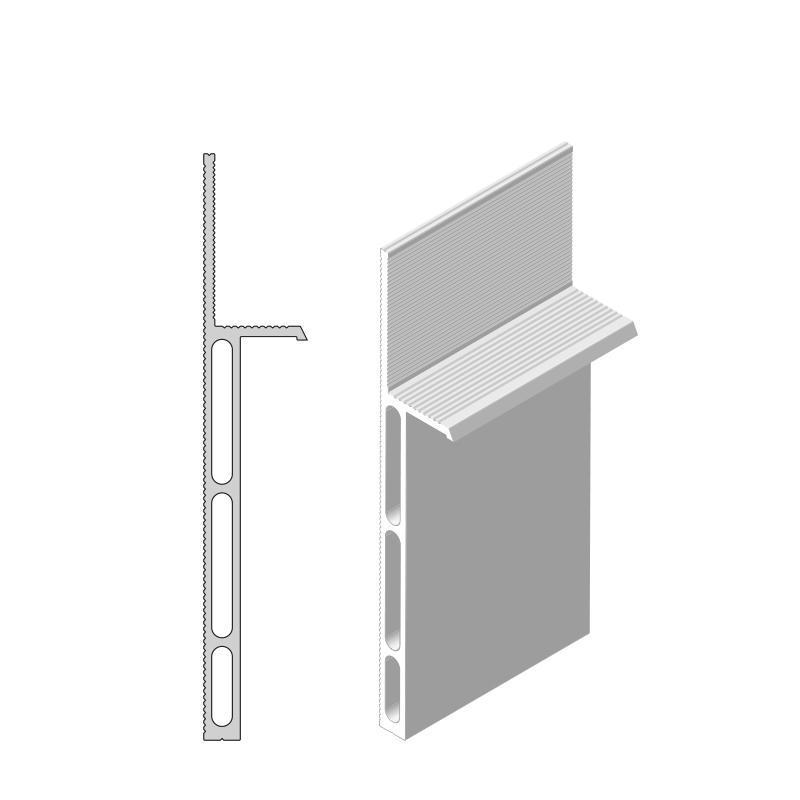

Aluminium profile for flush baseboard on masonry wall


Aluminium profile for SOLID WALL
15 mm depth

Aluminium profile for flush baseboard on plasterboard wall


Aluminium profile for STUD WALL
15 mm depth

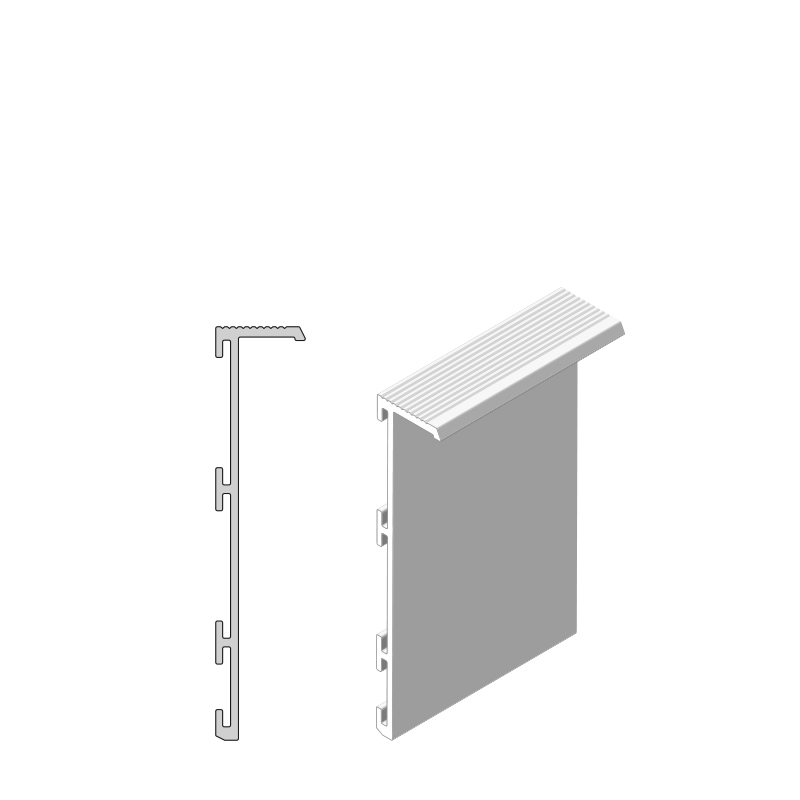

Aluminium profile for flush baseboard on plasterboard wall


Aluminium profile for SOLID and STUD WALL
13 mm depth

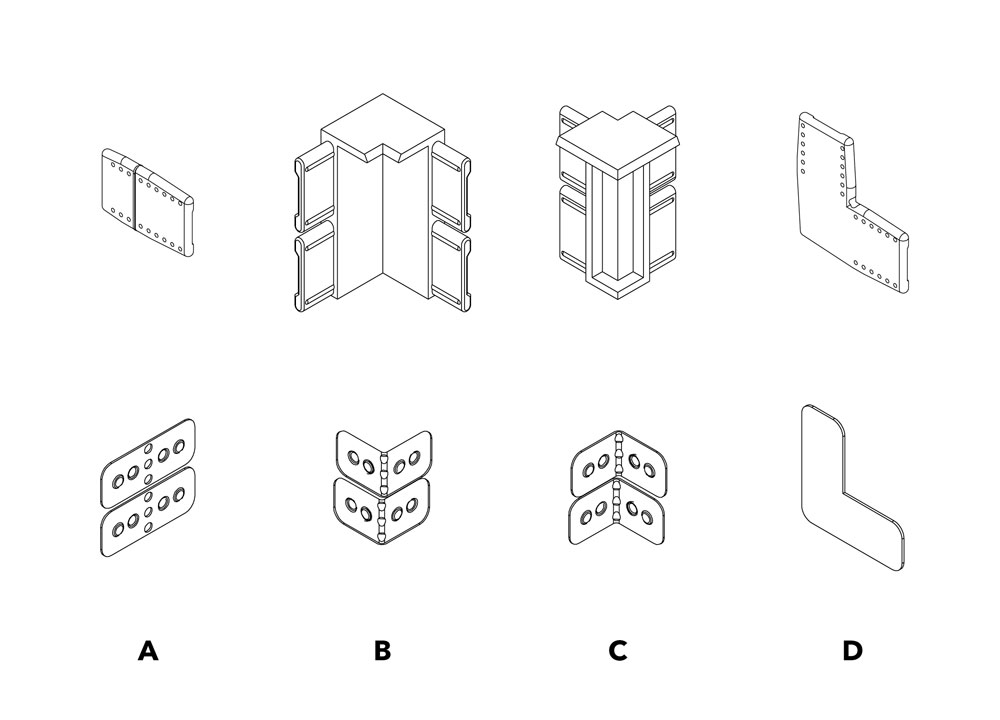

ECLISSE Syntesis joints for flush baseboard profile

Joints

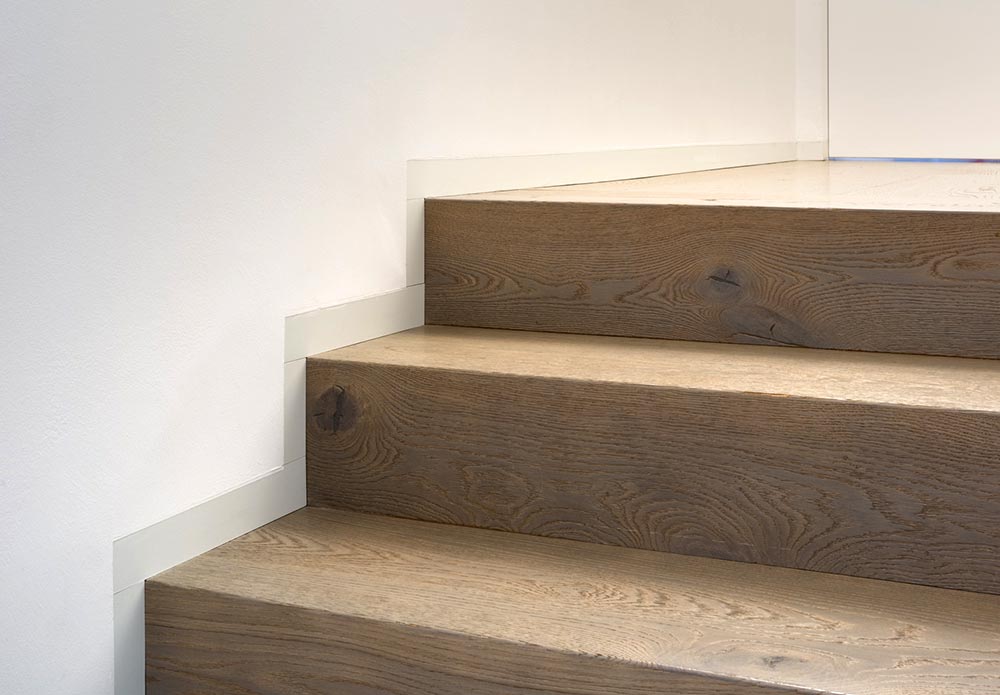

The prerogative of ECLISSE Syntesis Baseboard is being perfectly linear and free of interruptions. This is made possible thanks to special components that join the linear profiles with internal and external corners, steps and terminal profiles near the openings.

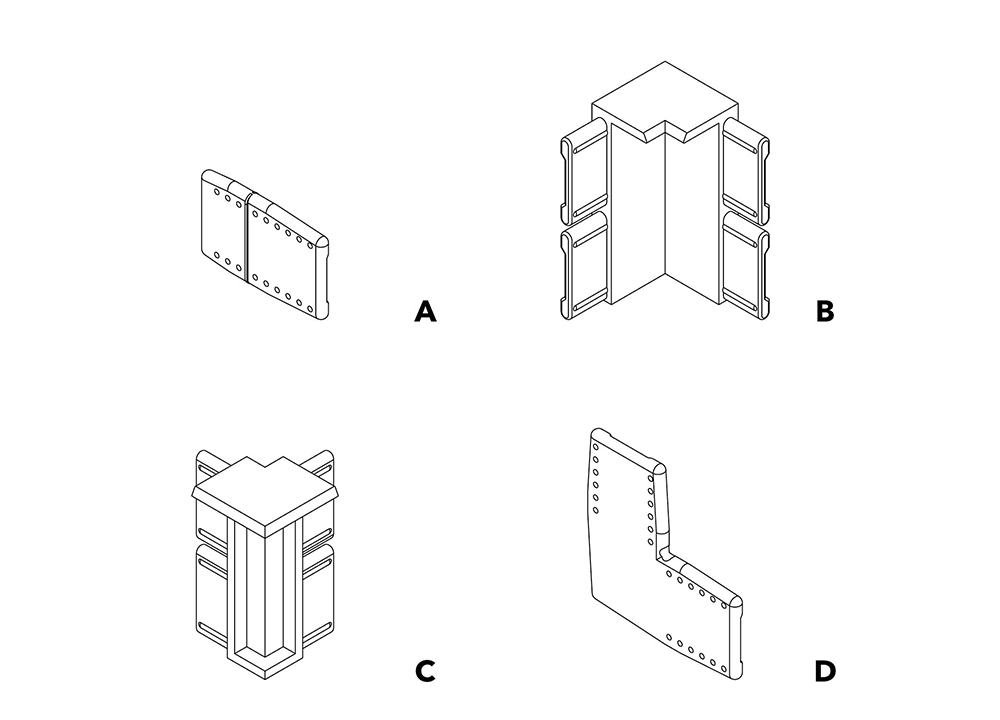

Upper joints are for 15 mm profiles, lower joints are for the 13 mm profile:
A - linear joints
B - joints for internal corner
C - joints for external corner
D - joints for steps
The 13 mm profile has a universal joint for linear and corner connections that only needs to be bent as required.

Terminal elements

Terminal elements are designed to connect ECLISSE Syntesis Baseboard profile to every counterframe of the ECLISSE Syntesis Collection and to all versions of Syntesis and 40 hinged door frames. Terminal elements for the 15 mm version are specially designed for difeerent types of frame while for the 13 mm version you have a single universal element which adapts to the chosen frame.

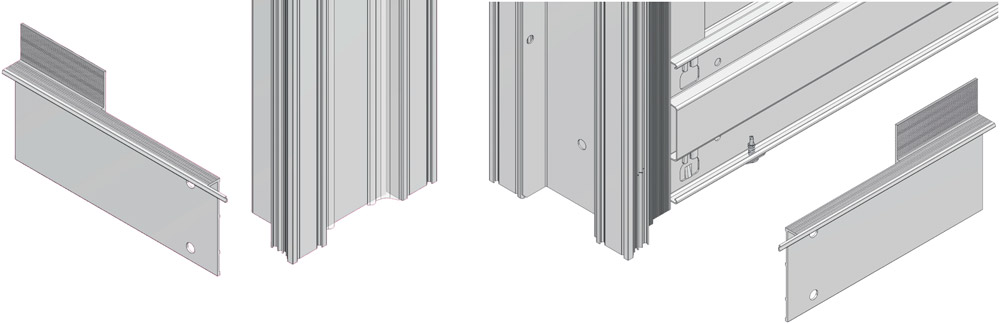

ECLISSE Syntesis Baseboard terminal elements 15 mm


15 mm on a sliding pocket door system

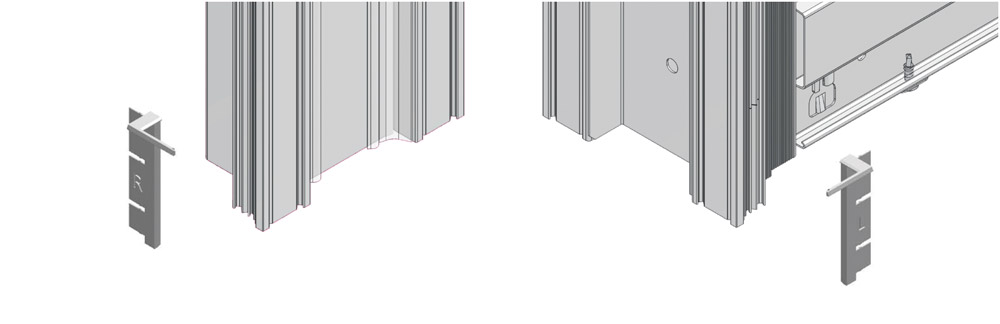

ECLISSE Syntesis Baseboard terminal elements 13 mm


13 mm profile on a sliding pocket door system

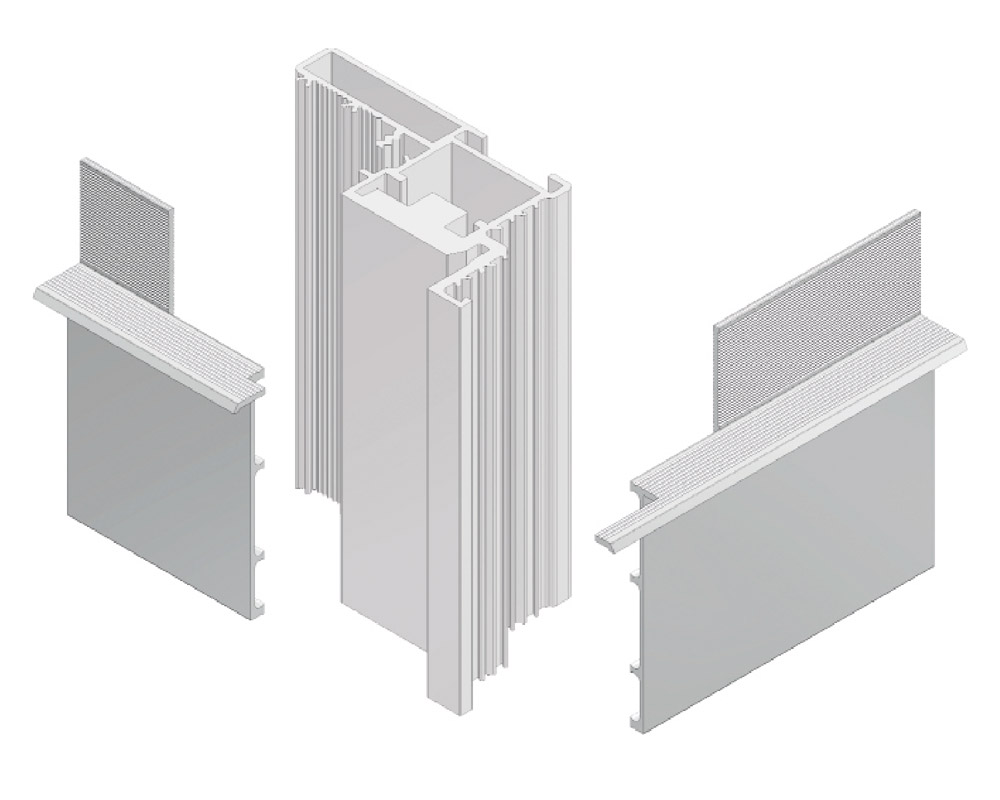

ECLISSE Syntesis Baseboard terminal elements 15 mm


15 mm on a hinged door frame
PUSH

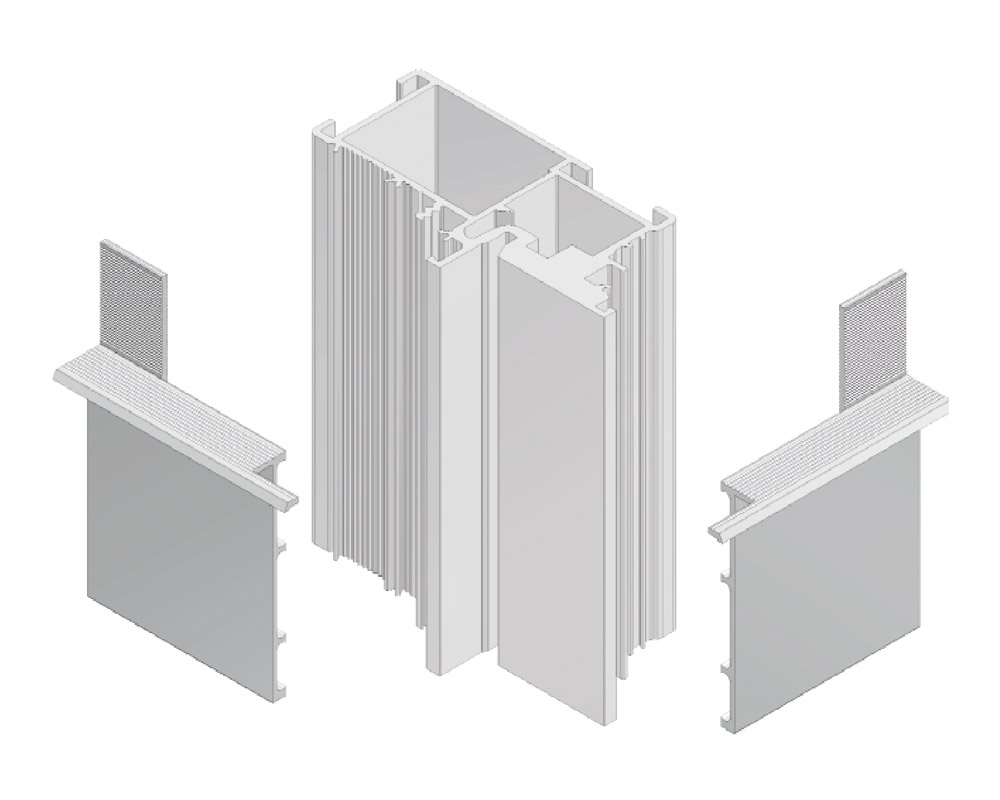

ECLISSE Syntesis Baseboard terminal elements 15 mm


15 mm on a hinged door frame
PULL

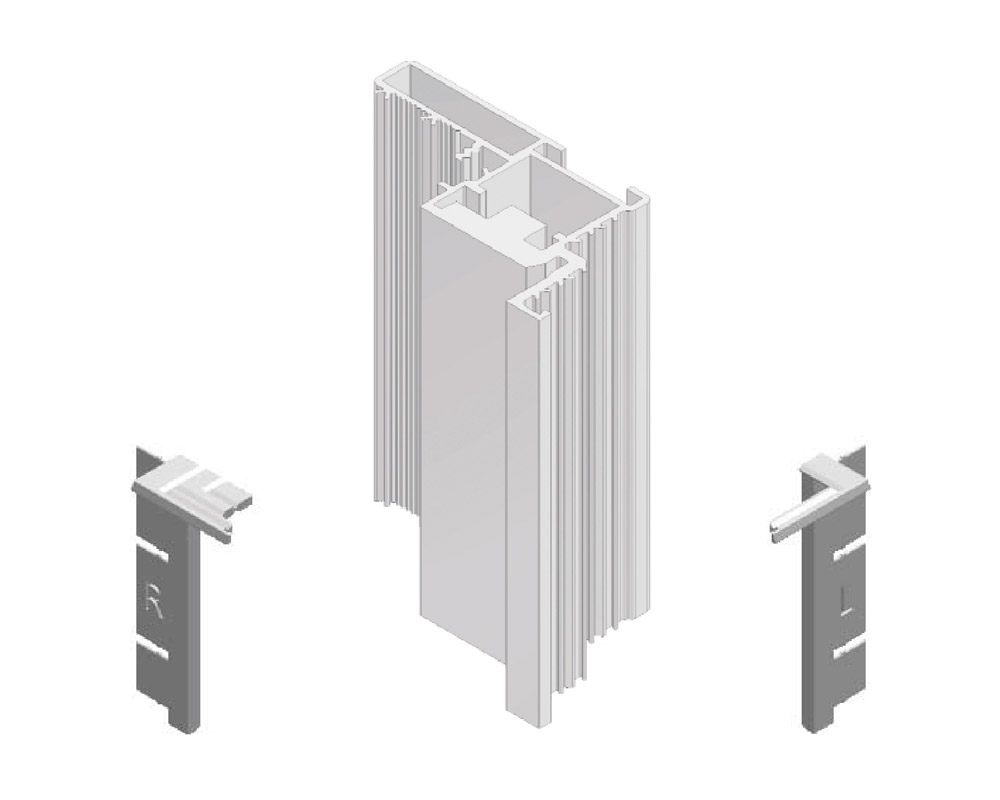

ECLISSE Syntesis Baseboard terminal elements 13 mm


13 mm on a hinged door frame
PUSH

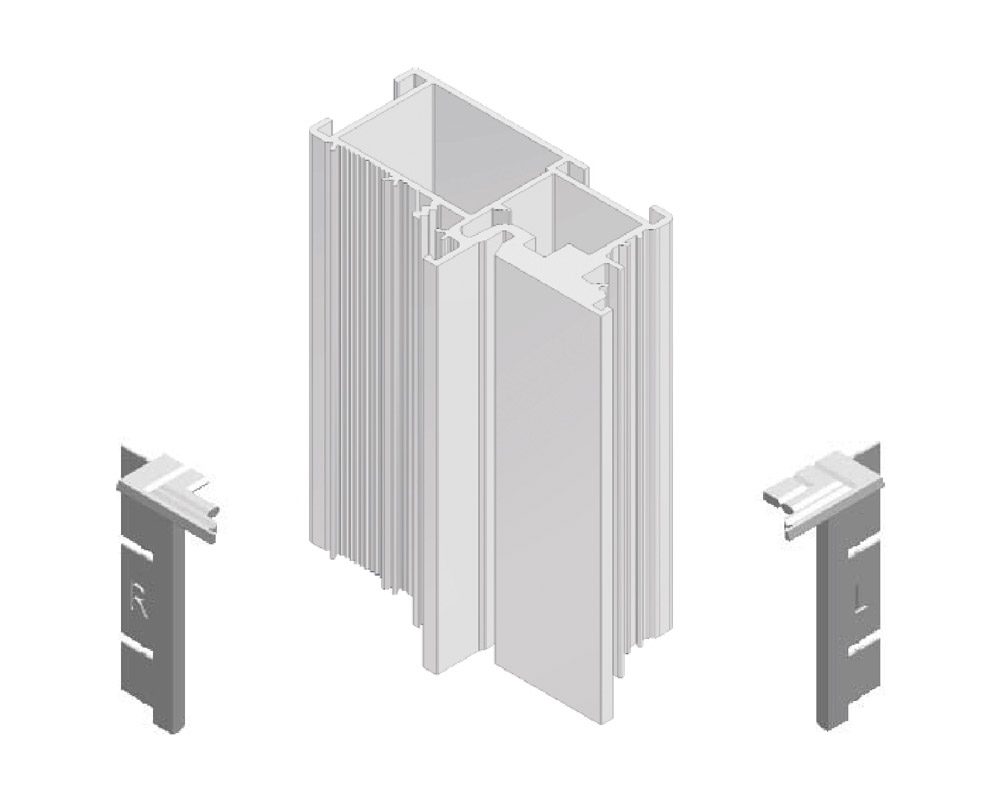

ECLISSE Syntesis Baseboard terminal elements 15 mm


13 mm on a hinged door frame
PULL



ECLISSE Syntesis Baseboard
