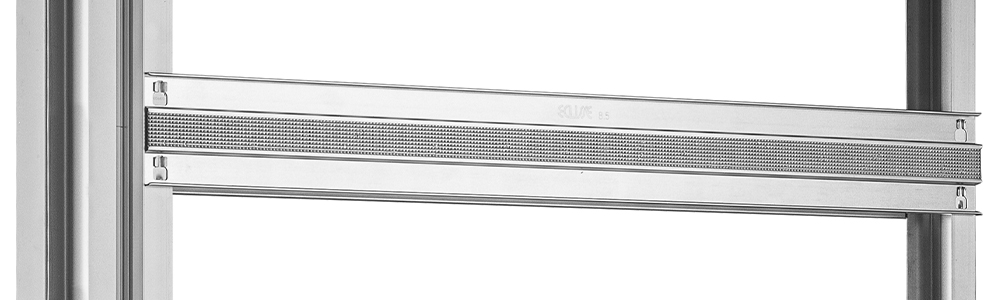

14 bars made in 7/10 galvanized steel, with a dovetail form which grant an increased strength to lateral pressures (in order to have an un-deformable internal passage).

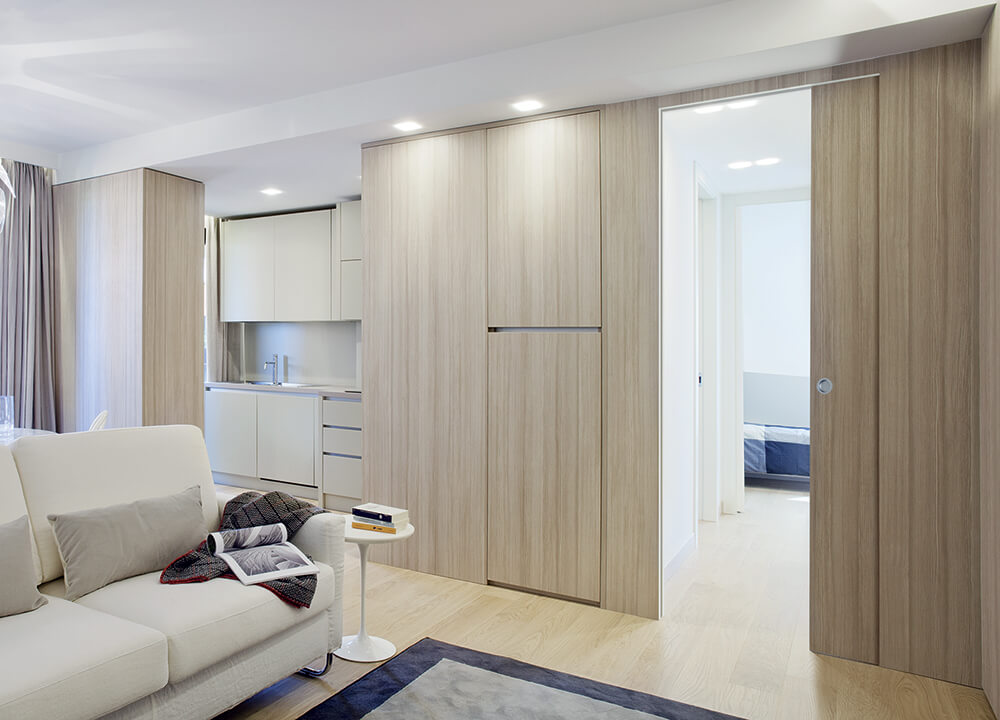

Syntesis Line
Flush sliding pocket door system for single door.
Minimalistic appearance.
No architraves needed.
OVERVIEW
FEATURES
WEATHERSTRIPS
They are inserted into the door panel millings and are adjustable downwards, upwards and tilting, for even pressure over the entire length. The baffle plate raises and lowers with each opening and closing of the door.
The rounded, flexible shape envelops the gaps with precision.

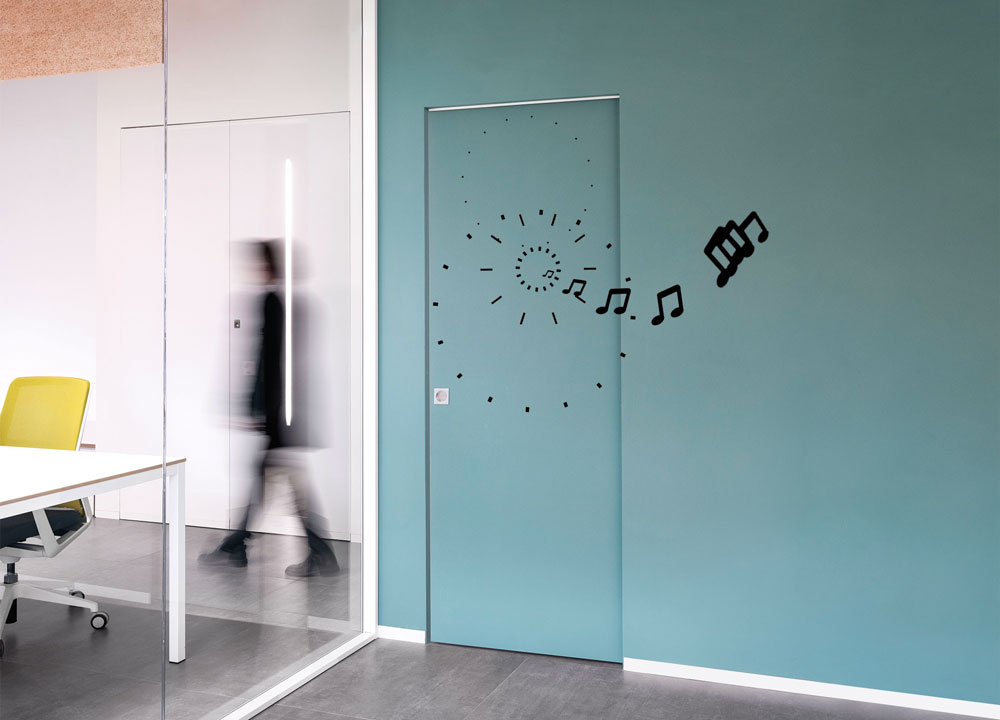

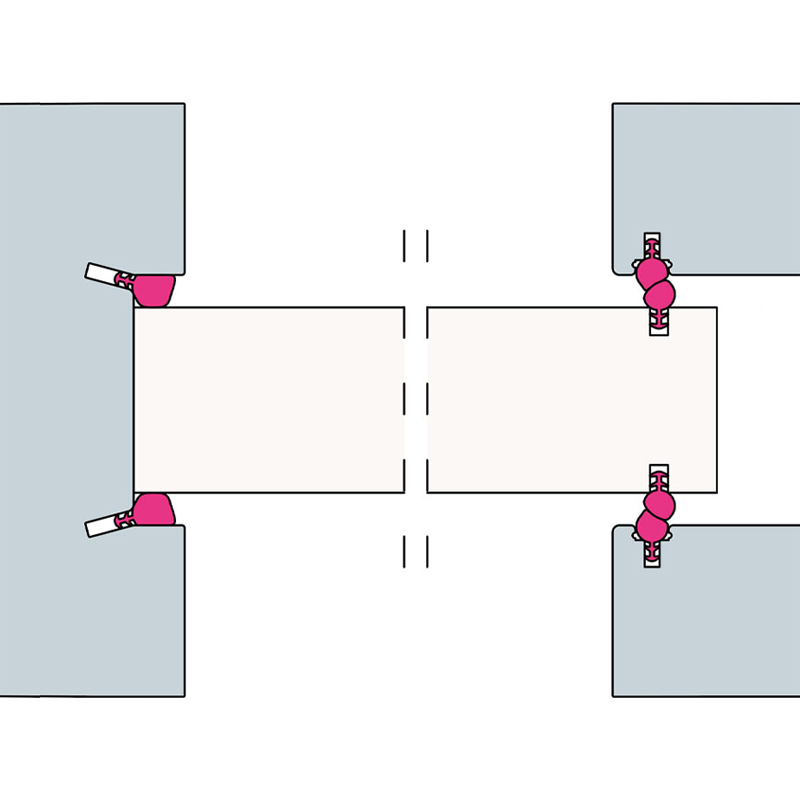

ACOUSTIC GASKETS
Installed on the door, they seal the vertical and upper interstices. Along with the automatic lower weatherstrip, they seal the complete door panel.
DOOR PANEL
The acoustic door panel is 40 mm thick and is manufactured with specific soundproofing material. It is available in lacquered RAL colours or primer-coated, ready to be painted.
To guarantee acoustic performance, the compatible locks and handles are either just the handle alone or the handle with thumb turn.
DEDICATED HARDWARE
The system includes specific acoustic gaskets that seal the perimeter, to guarantee the sound-proof performance.
Syntesis Line
Solid wall version

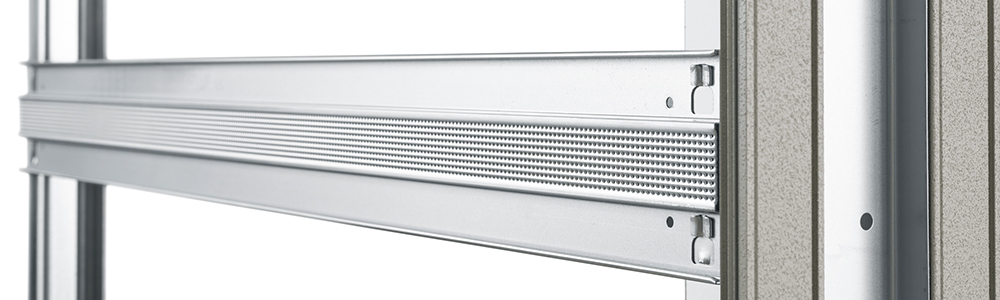

14 Horizontal reinforced bars - Syntesis (solid wall)
Reinforced bars - Syntesis, solid wall
Increasing the strength of the counterframe up to 40% than before.
Alignment bar (patented) - Syntesis, solid wall
It permits to solidly link the pocket with the stop jambs, thus making the assembly easier.

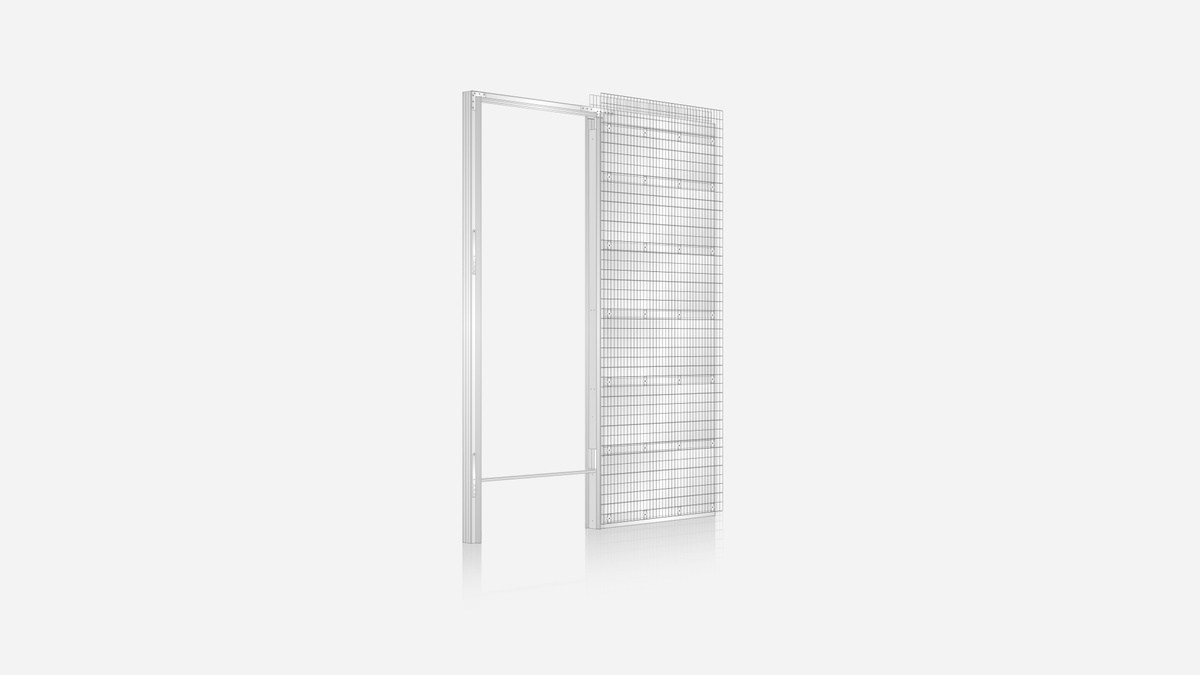

Protruding close plaster mesh - Syntesis
It joins the counterframe (50x25 mm) with the wall becoming an integral part of it, thus offering an increasing grasp of the laster. The finished wall won’t have faults.
Reinforced joint
It guarantees linearity and a better linkage of track, frame and verticals.

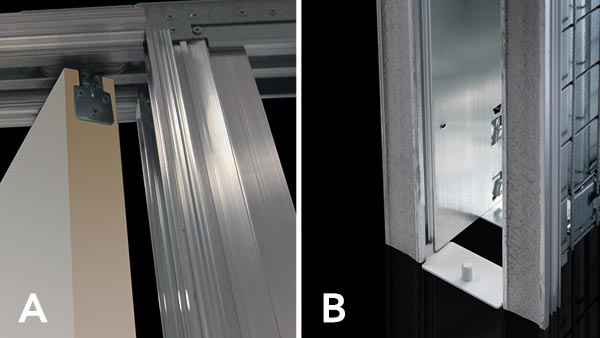

Sistema staffa posteriore e guidaporta autocentrante (italian patent pending)
L’inserimento del pannello porta è notevolmente più semplice grazie alla combinazione della staffa posteriore (foto A) e del guidaporta autocentrante, che si installa senza la necessità di forare il pavimento (foto B).
Transparent thermoplastic gasket
Completely transparent, it improves the aesthetics of the verticals bars but also the functionality because the door panel leans gently thanks to the resulting air cushion.
Strengthened brackets system
It guarantees linearity and strength.
Frontal stop
It permits the frontal adjustment and offers a better closing.

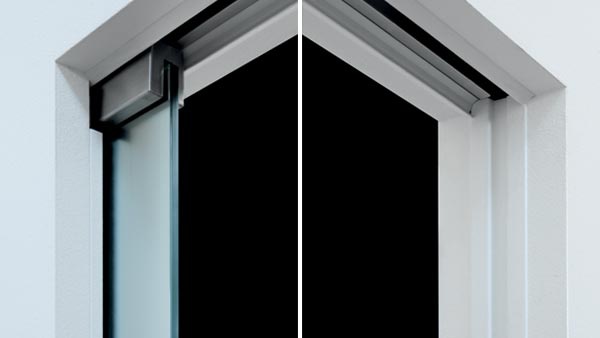

Vitro
Veletta in acciaio inox e complementi per montante di battuta dedicato a porte scorrevoli tutto vetro.
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
Certified runners with ball bearings - Syntesis
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.

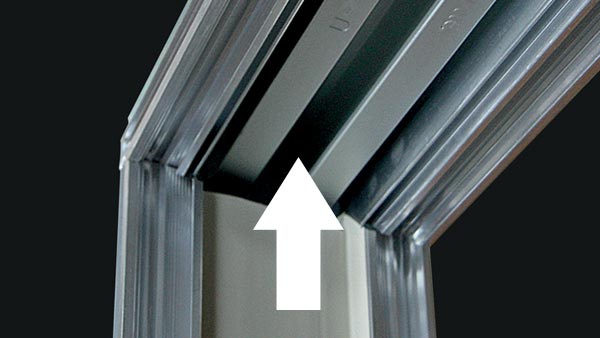

Under-door profile
It improves the strenght and the integrity of the pocket door.
Syntesis Line

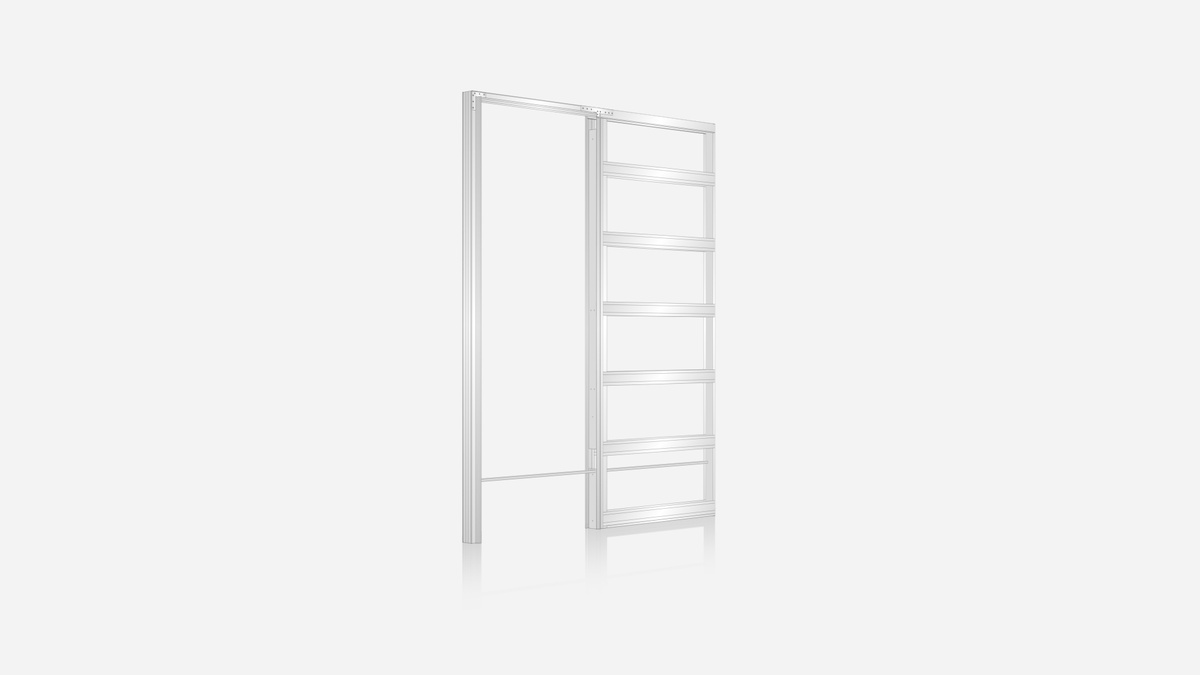

Stud wall version
12 horizontal reinforcing bars
12 for the stud wall version made in 7/10 galvanized steel, with a dovetail form which grant an increased strength to lateral pressures (in order to have an un-deformable internal passage). There are 24 bars with double leaf.
Under-door profile
It improves the strenght and the integrity of the pocket door.
Alignment bar (patented) - Syntesis, stud wall
It permits to solidly link the pocket with the stop jambs, thus making the assembly easier.
Reinforced bars - Syntesis, stud wall
Increasing the strength of the counterframe up to 40% than before.
Transparent thermoplastic gasket
Completely transparent, it improves the aesthetics of the verticals bars but also the functionality because the door panel leans gently thanks to the resulting air cushion.
Frontal stop
It permits the frontal adjustment and offers a better closing.
Strengthened brackets system
It guarantees linearity and strength.
Reinforced joint
It guarantees linearity and a better linkage of track, frame and verticals.
Certified runners with ball bearings - Syntesis
They guarantee long lasting, smooth and silent action. Standard door’s weight is 100 Kg.
Extractable track system (patented)
It is always possible to substitute worn mechanisms and to add accessories.
